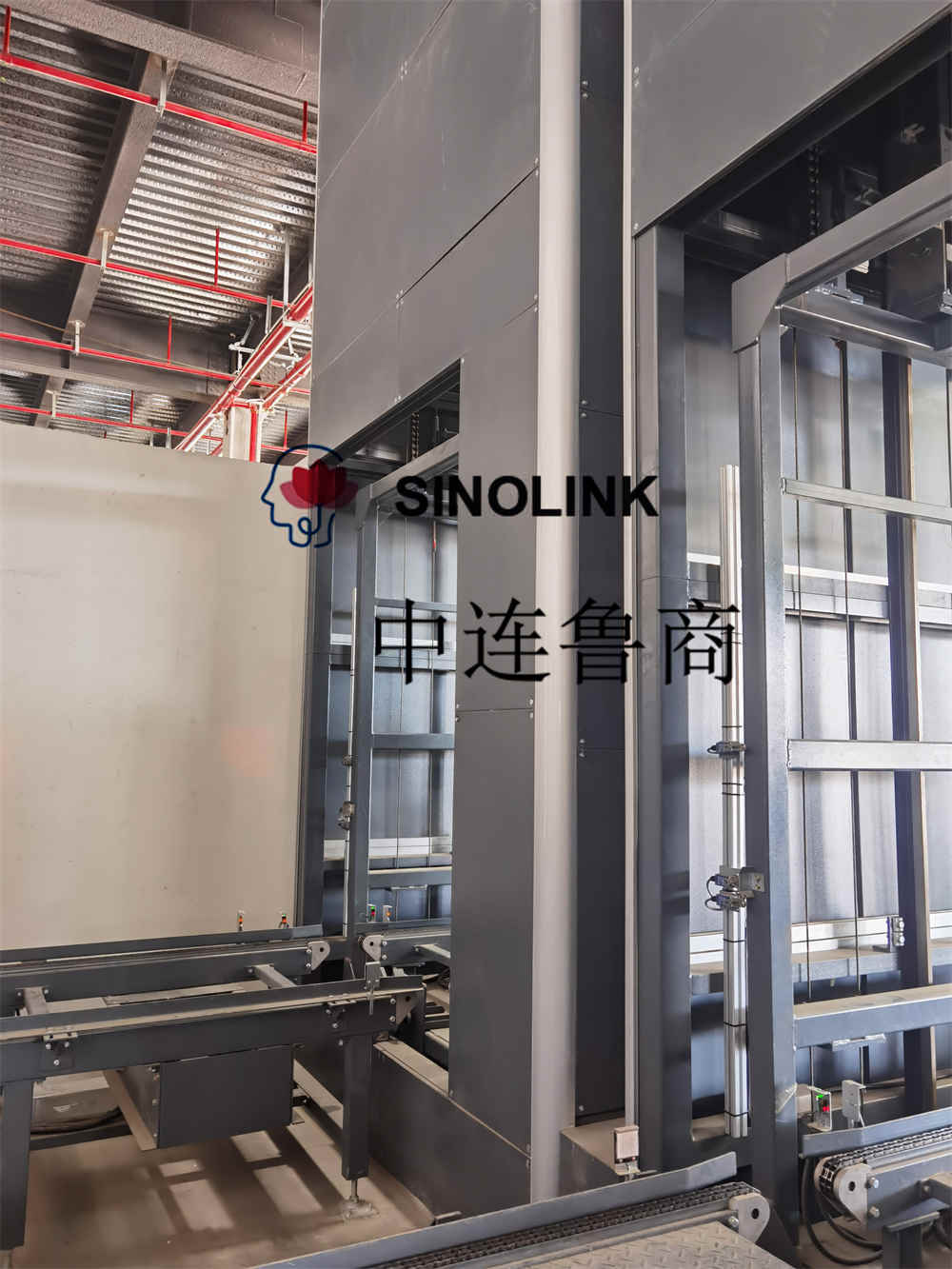

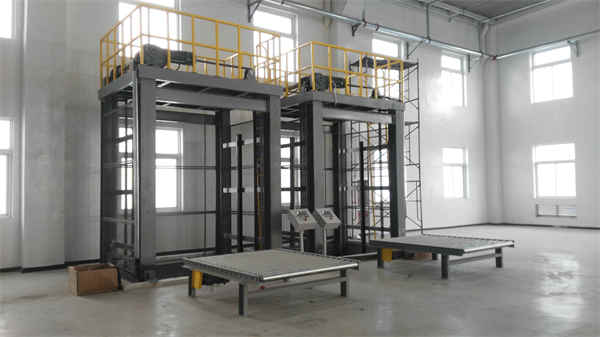

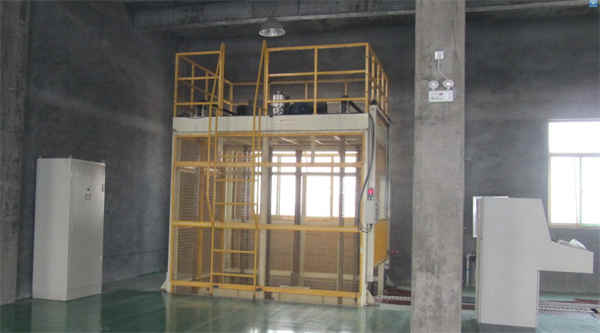

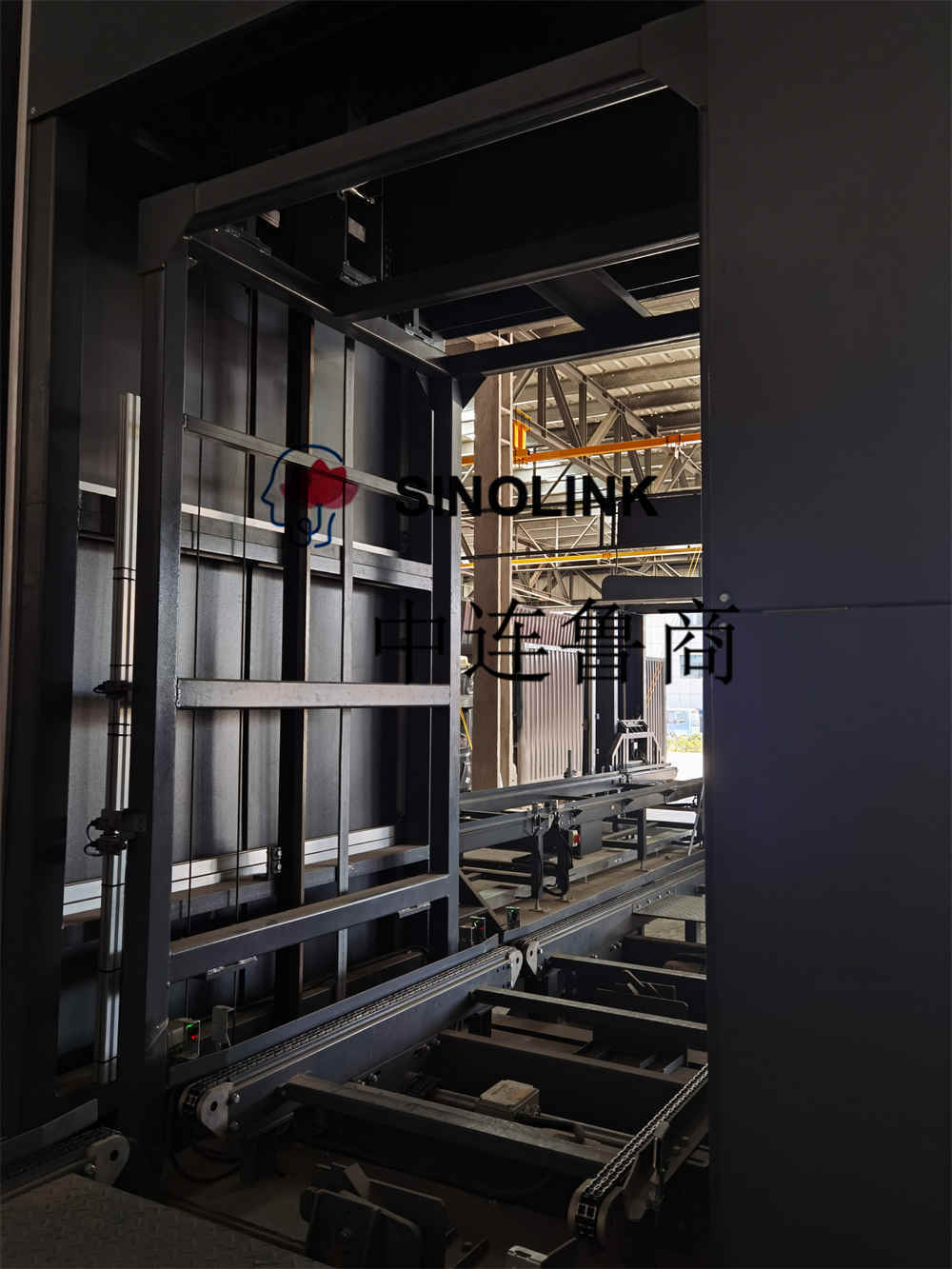

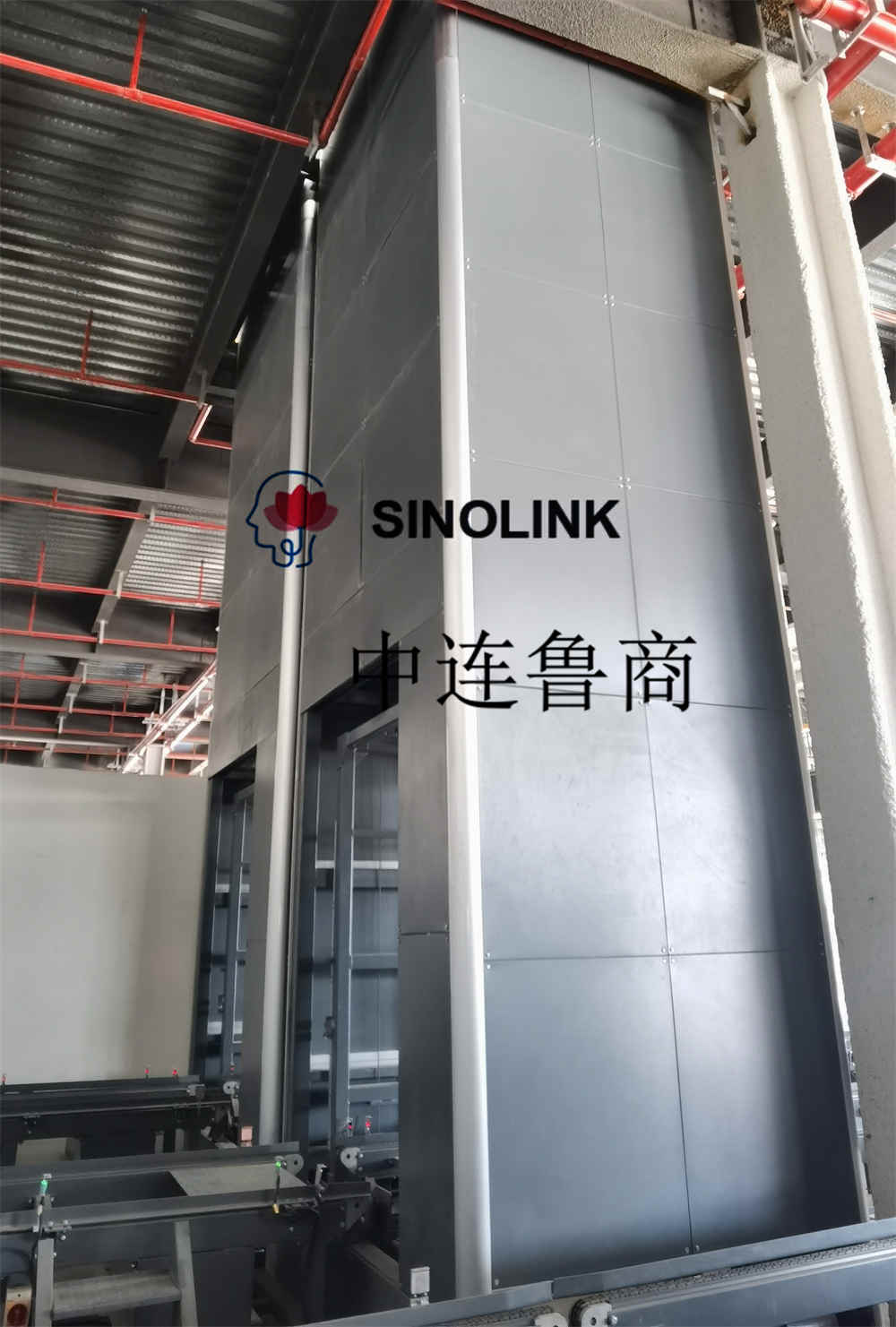

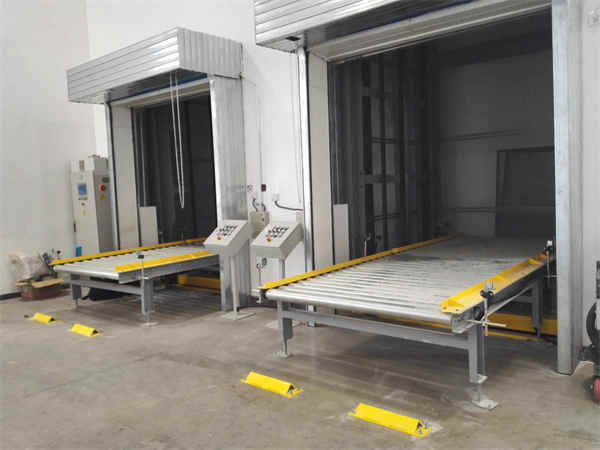

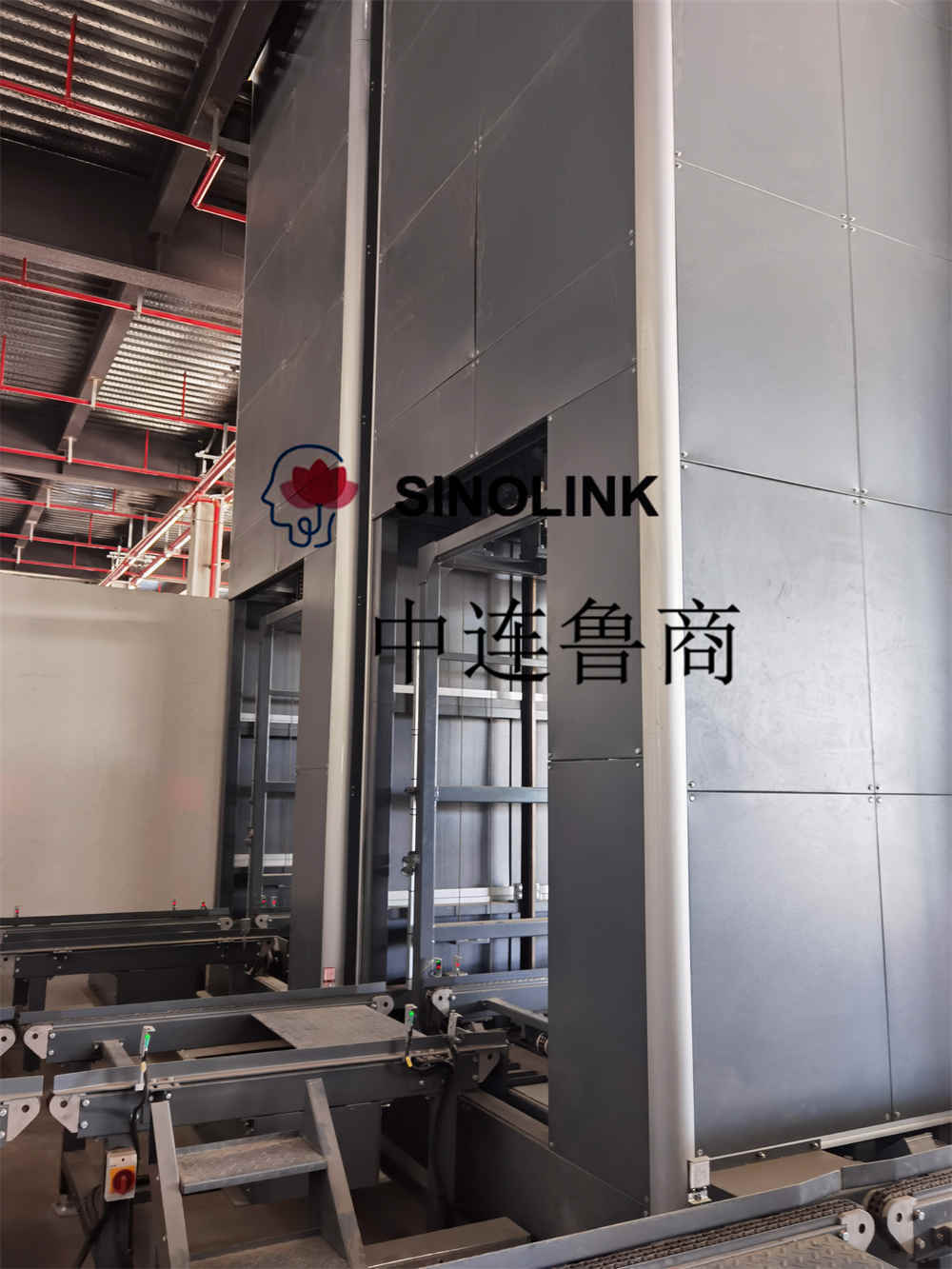

완전 자동 무인 왕복 수직 리프트 컨베이어

전자동 무인 중량물 수직 리프팅 컨베이어

그것 허용 논스톱 또는 제품의 왕복 운송 갇힌 공간. 이것 들어올리다 ~이다 특성화된 ~을 통해 그것의 안전, 신뢰성, 과도한 worke fficiency smal 점유 지역.

지금 연락 이메일 전화 왓츠앱

제품 세부 정보

완전 자동 무인 왕복 수직 리프트 컨베이어용 리프팅 장비:

이 전자동 무인 중량물 유형 수직 리프팅 컨베이어는 상자, 짠 가방, 플라스틱 배럴 및 다양한 상품을 수직으로 들어 올리는 데 적합합니다.

Fully Automatic Unmanned Reciprocating Vertical Lift Conveyor

1 기본 틀
1 Material: 80*80mm aluminum alloy profiles, linked and assembled by means of screws
two Protective screening: exterior body adopts obvious natural glass

2 운반 시스템
1 The most important chain makes use of carbon metal 16A-1 curler chain whose pitch is 25.4mm with W-2 bending plates bilaterally.
two The pallet chain adopts unidirectional bending, pitch 25.4mm.
three The pallet makes use of 9269K aluminium profile, the floor is macromolecule plastic

3 운전 시스템
1 The foremost axis makes use of carbon metal with nigrescence treatment, diameter 55mm
two Drive sprocket makes use of 16A-17 duplex chainwheel. Driven wheel makes use of 16A-17 easy chainwheel
three Tension bridle gadget makes use of T208 undeniable bearing housing
four The energy is SEW equipment reducer motor
4 제어 시스템
1 The manipulate software is Taiwan Yonghong PLC programming
two Detecting optoelectronic swap is Omron brand
three The manage cupboard is made of carbon steel

5 수직 상승 컨베이어의 작업 흐름

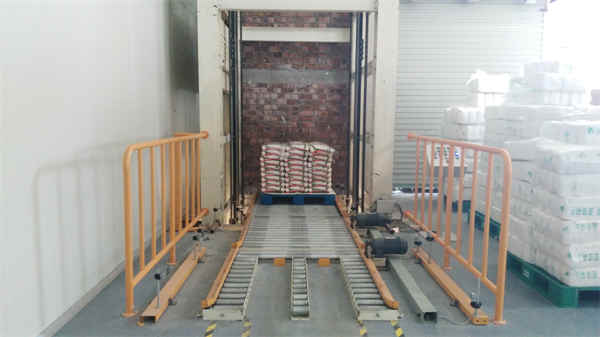

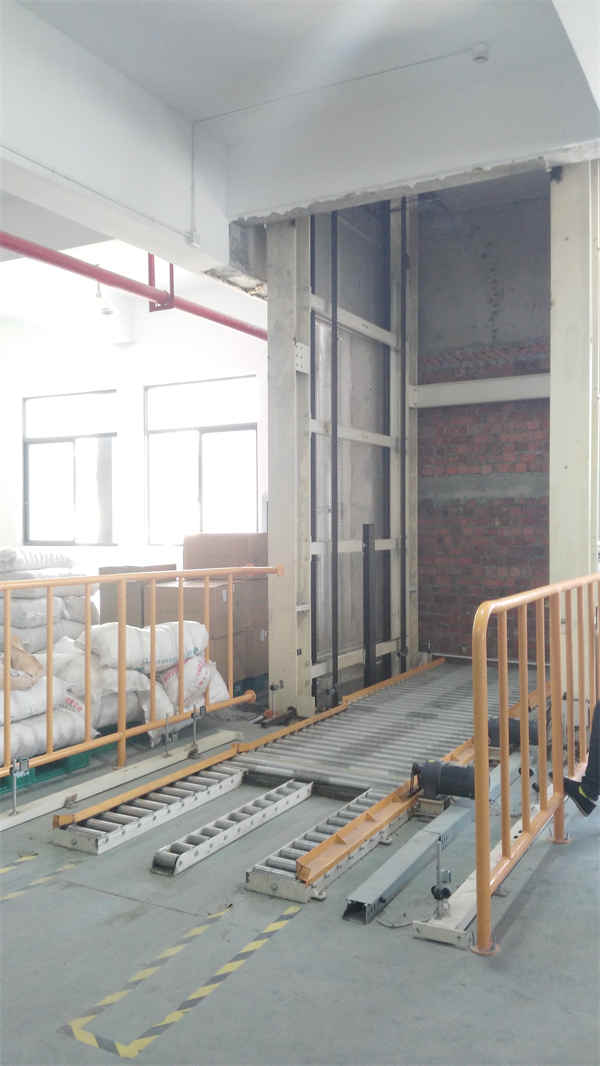

The product to be delivered is ready on the conveying line related to the elevator. When the photoelectricity detects that the pallet is in place, the PLC troubles a command. The blockading gadget will launch or the conveying line will start, and releases a product to the pallet. When the 2nd product arrive at the ready position, the block will raise or the conveying line stops and starts to wait for the photoelectricity to observe the subsequent pallet, then the PLC programming will trouble a command once more to launch the product.
